Products

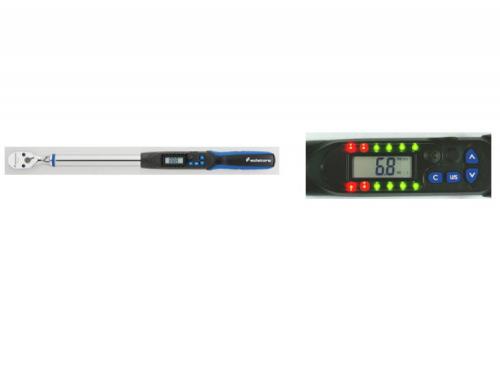

		WET Series
Model	WET2-030BN	WT3-135BN	WET4-135BN	WET4-200BN	WET4-340BN
Square Drive(inches)	1/4" DR	3/8" DR	1/2" DR	1/2" DR	1/2" DR
Head Type	Fixed - Lever Type Ratchet
Gear Teeth	36	36	36	36	36
Bright LED	12 LEDS (4 Red+8 Green)
Unit selection	N.m/ ft.lb/ in.lb/ kg.cm
Max. Torque	30 N-m/ 22.12 ft-lb/ 265.5 in-lb/ 306.1 kg-cm	135 N-m/ 99.5 ft-lb/ 1195 in-lb/ 1378 kg-cm	135 N-m / 99.5 ft-lb / 1195 in-lb / 1378 kg-cm	200 N-m / 147.5 ft-lb / 1770 in-lb / 2041 kg-cm	340 N-m / 250.7 ft-lb / 3009 in-lb / 3469 kg-cm
Torque Measuring Range	1.5~30 N-m 1.11~22.12 ft-lb 13.3~265.5 in-lb 15.3~306.1 kg-cm	6.8-135 N-m 5~99.5 ft-lb 60~1195 in-lb 69~1378 kg-cm	6.8-135 N-m 5~99.5 ft-lb 60~1195 in-lb 69~1378 kg-cm	10-200 N-m 7.4~147.5 ft-lb 88~1770 in-lb 102~2041 kg-cm	17-340 N-m 12.5~250.7 ft-lb 150~3009 in-lb 173~3469 kg-cm
Accuracy Guaranteed Range	6~30 N-m 4.4~22.12 ft-lb 53~265.5 in-lb 61~306.1 kg-cm	27-135 N-m 19.9~99.5 ft-lb 239~1195 in-lb 276~1378 kg-cm	27-135 N-m 19.9~99.5 ft-lb 239~1195 in-lb 276~1378 kg-cm	40-200 N-m 29.5~147.5 ft-lb 354~1770 in-lb 408~2041 kg-cm	68-340 N-m 50.1~250.7 ft-lb 602~3009 in-lb 694~3469 kg-cm
Accuracy	±2%(CW)	±2%(CW)	±2%(CW)	±2%(CW)	±2%(CW)
Accuracy	±3%(CCW)	±3%(CCW)	±3%(CCW)	±3%(CCW)	±3%(CCW)
N.W.(kg)/PC (blow mold case included)	1.36	1.54	1.56	2.14	2.34
6 PCS / CTN (mm)	485 x 258 x 212	485 x 258 x 212	485 x 258 x 212	691 x 258 x 212	691 x 258 x 212
6 PCS / CTN (cuft)	0.94	0.94	0.94	1.34	1.34
G.W. (kg) / CTN	10	11	12	14	15

Model	WET2-030AN	WET3-135AN	WET4-135AN	WET4-200AN	WET4-340AN
Square Drive(inches)	1/4" DR	3/8" DR	1/2" DR	1/2" DR	1/2" DR
Head Type	Fixed - Lever Type Ratchet
Gear Teeth	36	36	36	36	36
Bright LED	12 LEDS (4 Red+8 Green)
Unit selection	N.m/ ft.lb/ in.lb/ kg.cm
Max. Torque	30 N-m/ 22.12 ft-lb/ 265.5 in-lb/ 306.1 kg-cm	135 N-m/ 99.5 ft-lb/ 1195 in-lb/ 1378 kg-cm	135 N-m / 99.5 ft-lb / 1195 in-lb / 1378 kg-cm	200 N-m / 147.5 ft-lb / 1770 in-lb / 2041 kg-cm	340 N-m / 250.7 ft-lb / 3009 in-lb / 3469 kg-cm
Torque Measuring Range	1.5~30 N-m 1.11~22.12 ft-lb 13.3~265.5 in-lb 15.3~306.1 kg-cm	6.8-135 N-m 5~99.5 ft-lb 60~1195 in-lb 69~1378 kg-cm	6.8-135 N-m 5~99.5 ft-lb 60~1195 in-lb 69~1378 kg-cm	10-200 N-m 7.4~147.5 ft-lb 88~1770 in-lb 102~2041 kg-cm	17-340 N-m 12.5~250.7 ft-lb 150~3009 in-lb 173~3469 kg-cm
Accuracy Guaranteed Range	6~30 N-m 4.4~22.12 ft-lb 53~265.5 in-lb 61~306.1 kg-cm	27-135 N-m 19.9~99.5 ft-lb 239~1195 in-lb 276~1378 kg-cm	27-135 N-m 19.9~99.5 ft-lb 239~1195 in-lb 276~1378 kg-cm	40-200 N-m 29.5~147.5 ft-lb 354~1770 in-lb 408~2041 kg-cm	68-340 N-m 50.1~250.7 ft-lb 602~3009 in-lb 694~3469 kg-cm
Accuracy	±1%(CW)	±1%(CW)	±1%(CW)	±1%(CW)	±1%(CW)
Accuracy	±2%(CCW)	±2%(CCW)	±2%(CCW)	±2%(CCW)	±2%(CCW)
N.W.(kg)/PC (blow mold case included)	1.36	1.54	1.56	2.14	2.34
6 PCS / CTN (mm)	485 x 258 x 212	485 x 258 x 212	485 x 258 x 212	691 x 258 x 212	691 x 258 x 212
6 PCS / CTN (cuft)	0.94	0.94	0.94	1.34	1.34
G.W. (kg) / CTN	10	11	12	14	15
